Dental Pro 10 - Prodways Machines - Dental 3D printers

Key Features & Benefits

Exceptional Surface Quality

    Thanks to its advanced technology, the printer provides smooth and detailed surfaces, minimizing the need for post-processing and ensuring high-quality results.

Fast Production

    The DENTAL PRO 10 enables ultra-fast 3D printing, reducing production time for dental models while increasing the efficiency of laboratory operations.
Get a quote

    ProMaker P1000 S Specifications

    DENTAL PRO 10 Specifications

    Number of DLP® Heads

    1

    Technology

    UV-LED DLP®, 385 nm wavelength

    Applications

    Aligners Models, Crown & Bridge models, Trays, Orthodontics & Implantology models

    Materials Qualified

    Absolute Aligner, Provivic Denture Base, PLASTCure Modele 300/310/320 (non exhaustive list)

    Light Power **

    90 mW / cm²

    Max. Build envelope size (LxWxH)

    300 x 445 x 2350 mm | Customizable configuration possible based on needs

    Native pixel size (X, Y)

    42 μm (0.0016 inches)

    Layer thickness*

    50 – 175 μm (0.001 to 0.006 inches)

    Platform type

    Granite, perforated or metal platform

    Printer size (LxWxH)

    855 x 1100 x 1780 mm | 33.7 x 43.3 x 70.1 inches

    Weight

    510 Kg | 1125 lbs.

    Power requirements

    210 – 240 VAC, 8-12A, 50/60 Hz

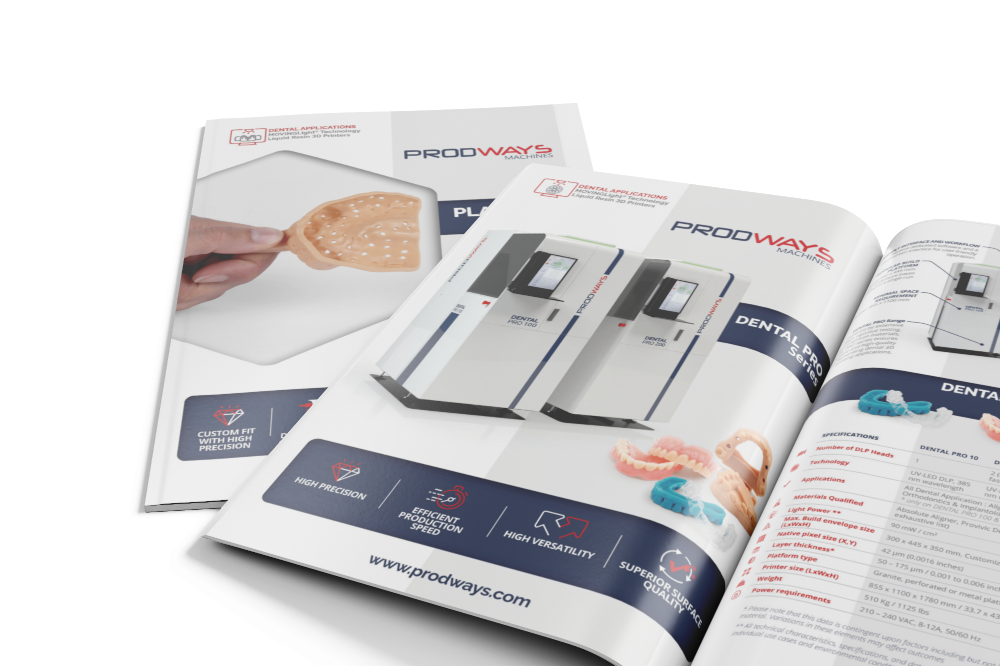

    Download Data Sheet

    *Please note that this data is contingent upon factors including but not limited to part geometry, build style, and material. Variations in these elements may affect outcomes.

    **All technical characteristics, specifications, and data provided in this document are non-binding and subject to individual use cases and environmental conditions. Performance and results may vary based on these factors.
